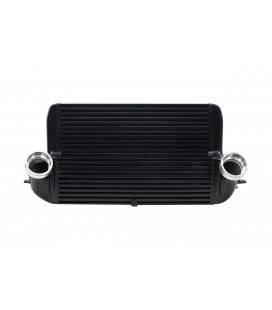

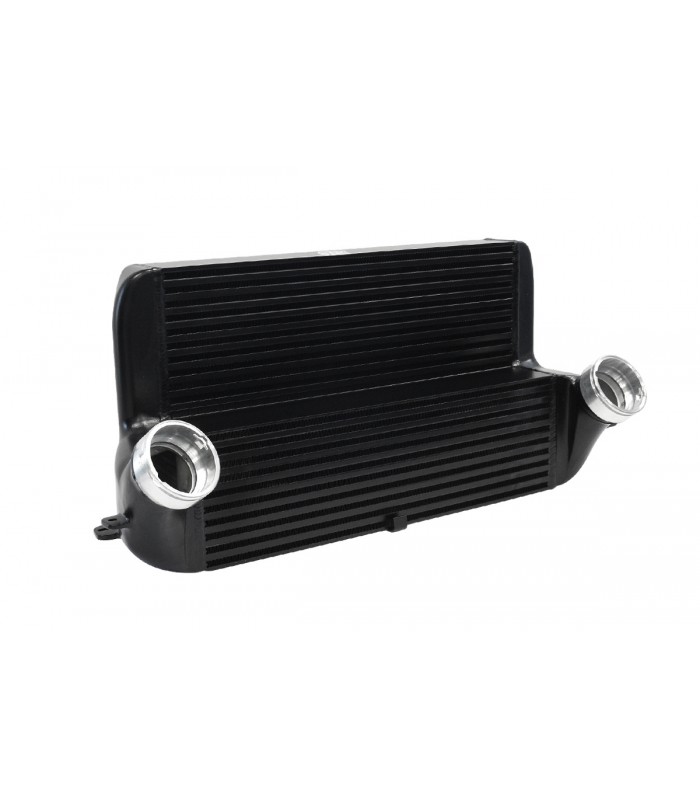

TurboWorks Intercooler BMW X5 X6 E70 E71 F15 F16

INTERCOOLER for the brand and model indicated in the topic title. The entire component is made with great care and precision, the welded elements are so-called TIGIEM, T-6061 aluminum.

Suitable for:

BMW X5 E70 3.0d / 3.0sd (2006-2010)

BMW X5 E70 LCI 30dX / 35dX / 35iX / 40dX / 40iX (2009-2013)

BMW X6 E71 30dX / 35dX / 35iX / 40dX / 40iX (2007-2014)

BMW X5 F15 25d / 25dX / 28iX / 30dX / 35dX / 35i / 35iX / 40dX / 40eX (2012-2018)

BMW X6 F16 28iX / 30dX / 35i / 35iX / 40dX (2013-2018)

Core dimensions:

Width: 510 mm
Height: 335/160 mm
Thickness: 150/70 mm

Our intercoolers were one of the few to be tested at 10 bar.

TurboWorks intercoolers feature an efficient COOL-TEC + core, the walls of which are made of the highest quality polished aluminum.

Other cores have less spaced fins, which results in poor cooling, while COOL-TEC + cores are made with finer fins, which guarantees significantly better cooling.
Application:
Make Engine type Engine CCM Engine HP (kW) Year of manufacture from - Year to
BMW X5 (E70) (2006-2013) xDrive 30 d (M57 D30 (306D3)) 2993 235 (173) 2008 - 2010
BMW X5 (E70) (2006-2013) xDrive 40 i (N55 B30 A) 2979 306 (225) 2012 - 2013
BMW X5 (E70) (2006-2013) 3.0 d (M57 D30 (306D3)) 2993 235 (173) 2006 - 2008
BMW X5 (E70) (2006-2013) xDrive 40 d (N57 D30 B) 2993 306 (225) 2010-2013
BMW X5 (E70) (2006-2013) M 50 d (N57 D30 C) 2993 381 (280) 2011-2013
BMW X6 (E71, E72) (2007-2014) xDrive 30 d (N57 D30 A) 2993 211 (155) 2010-2014
BMW X6 (E71, E72) (2007-2014) xDrive 35 d (M57 D30 (306D5)) 2993 286 (210) 2008-2010
BMW X6 (E71, E72) (2007-2014) xDrive 40 d (N57 D30 B) 2993 306 (225) 2009-2014
BMW X6 (E71, E72) (2007-2014) M 50 d (N57 D30 C) 2993 381 (280) 2011-2014
BMW X5 (F15, F85) (2013-2018) xDrive 25 d (N57 D30 A) 2993 218 (160) 2014-2018
BMW X5 (F15, F85) (2013-2018) xDrive 30 d (N57 D30 A) 2993 286 (210) 2013-2018 BMW X5 (F15, F85) (2013-2018) xDrive 40 d (N57 D30 B) 2993 313 (230) 2013-2018 BMW X5 (F15, F85) (2013-2018) xDrive 35 i (N55 B30 A) 2979 306 (225) 2013-2018 BMW X6 (F16, F86) (2014-2019) xDrive 35 i (N55 B30 A) 2979 306 (225) 2014-2019 BMW X6 (F16, F86) (2014-2019) xDrive 30 d (N57 D30 A) 2993 211 (155) 2014-2019
BMW X6 (F16, F86) (2014-2019) xDrive 40 d (N57 D30 B) 2993 313 (230) 2014-2019
